S1 Elise – Suspension Refresh – Removing Ball Joints and Bushes from Wishbones

The last parts to strip down were the wishbones. They all had some surface rust, as seems to be the norm for all Elise’s, so I wanted to clean them down and give them a good coating of POR15.ย I had also ordered spherical bearings to replace the rubber bushes and new ball joints for all the wishbones so all the old ones would need removing anyhow.

Here’s a lower front wishbone and the Elise Parts ball joint removal/fitting tool. This tool is intended to allow ball joints to be replaced without the need to remove the wishbone to use a vice/press but it works so well I chose to use it over using the vice anyway.

IMG_6222

Rubber boot removed before fitting the tool. It needs removing or it can get chewed up and wedged around the removal tool.

IMG_6224

Elise Parts ball joint tool in place.

IMG_6225

IMG_6227

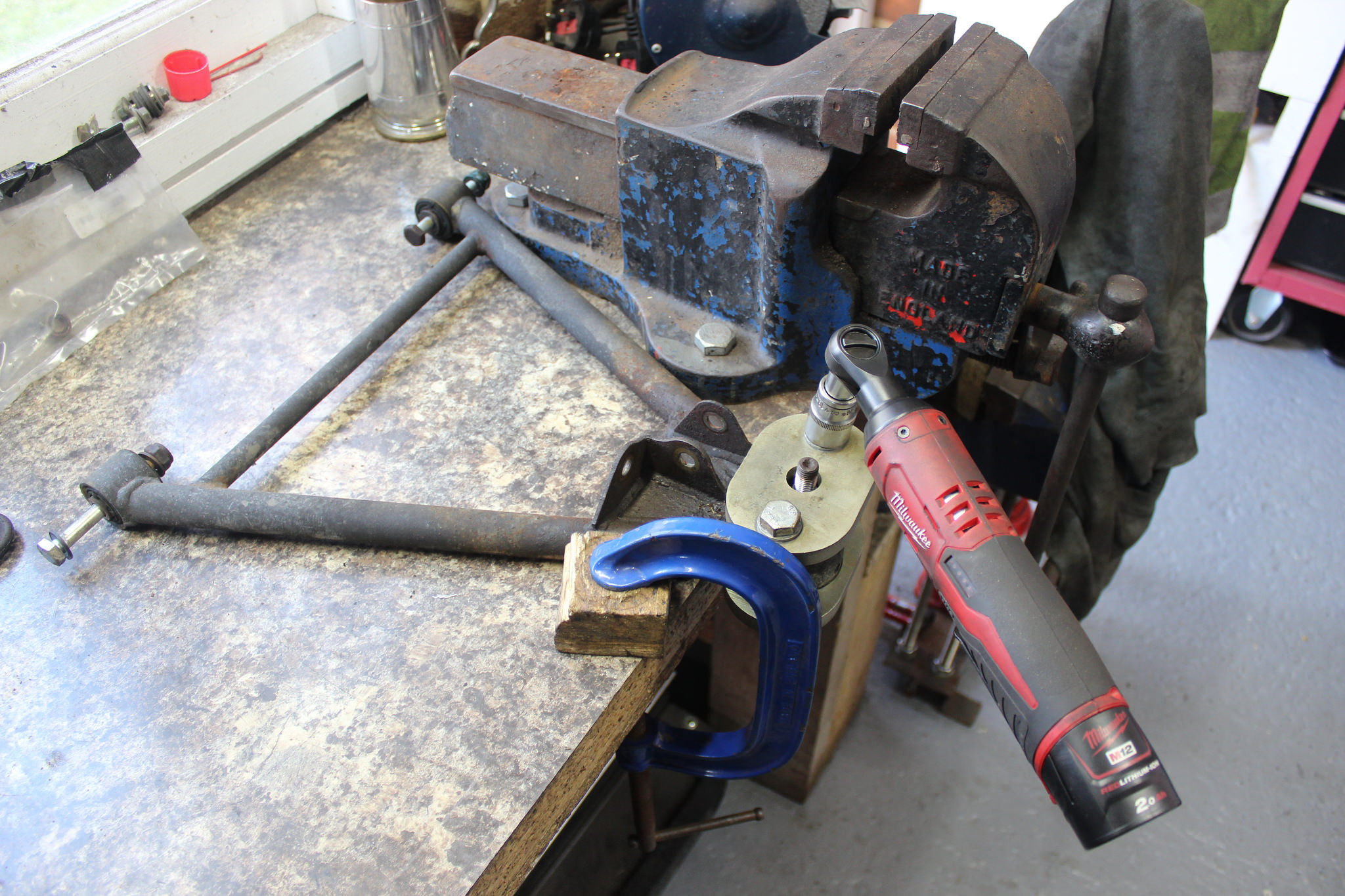

Pressing out the joint.

IMG_6228

First one out. 7 more to go.

IMG_6231

On to the rear wishbones.

IMG_6261

Some more of the boots at the end of their life though the actual ball joint was ok.

IMG_6262

IMG_6263

IMG_6265

IMG_6260

Nearly done.

IMG_6266

All 8 removed.

IMG_6274

And finally on to removing the original rubber bushes.

IMG_6281

A decent vice and a couple of sockets the right size and they press out easily.

IMG_6282

IMG_6283

IMG_6285

Do that 16 times…

IMG_6286

…and that’s it.

IMG_6288

That’s the last of the dismantling of things. Still a long way from reassembly though.
