preparing and leveling the garage floor

The new floor needed sealing before I could even think about any car jobs being done, getting the concrete soaked with oil would mean paint would never stick properly.  Also the lift couldn’t be installed until I had a level floor.

Started by chipping off all the bits of mortar dropped when bricklaying.

IMAG6465

IMAG6468

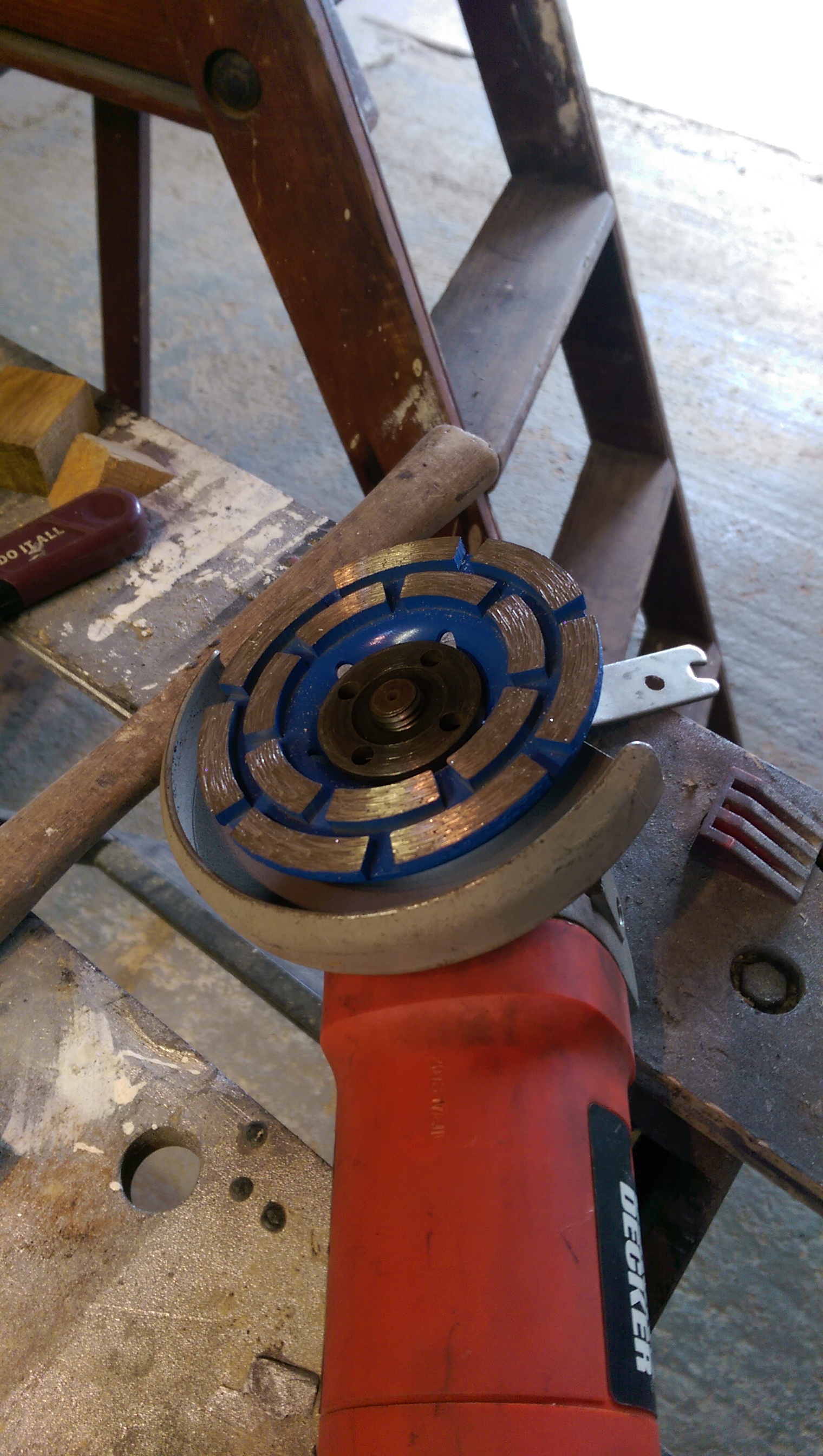

New tool to grind off all the high spots and old paint from the original floor.

IMAG6469

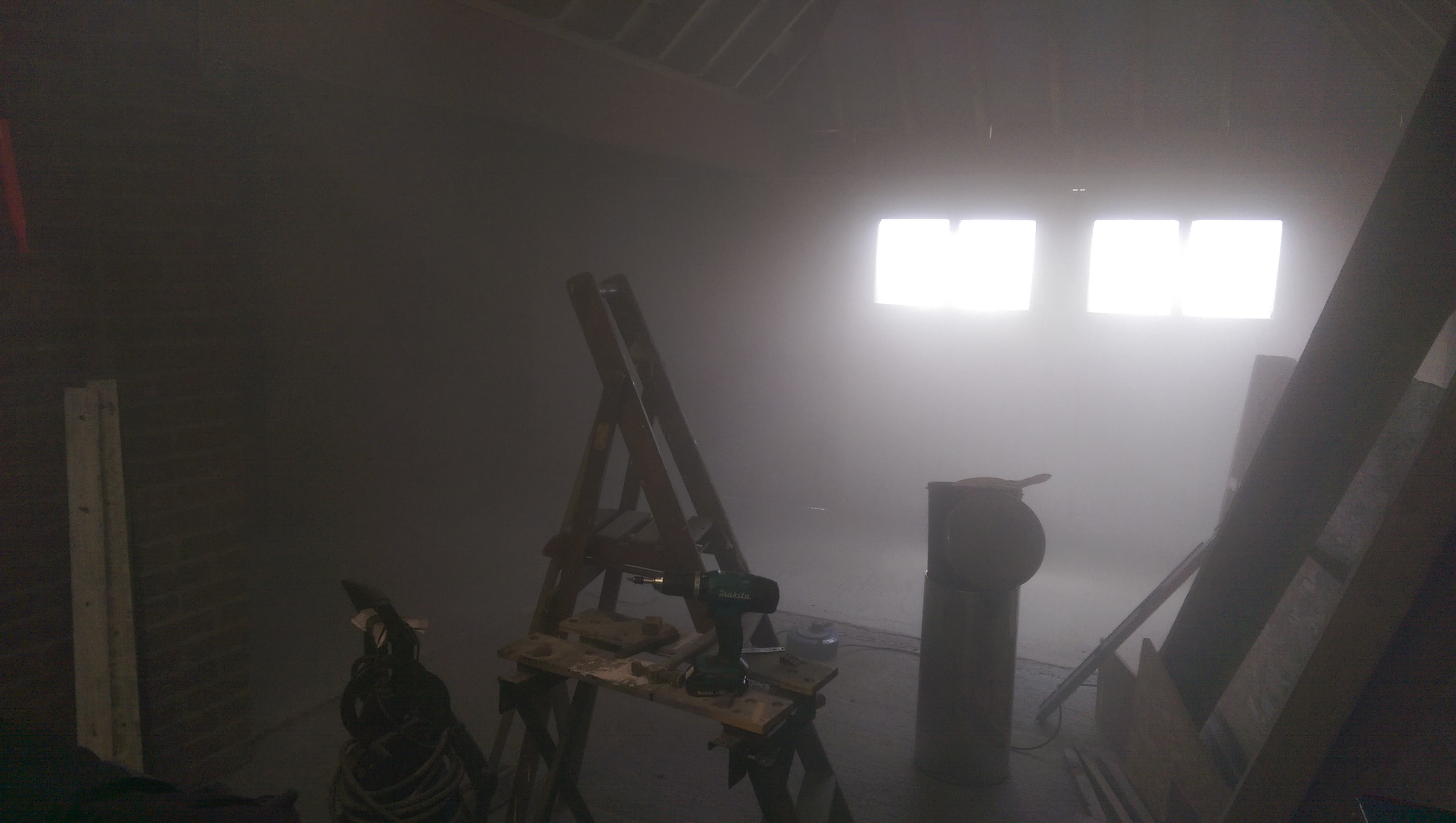

This is a dusty job!

IMAG6471

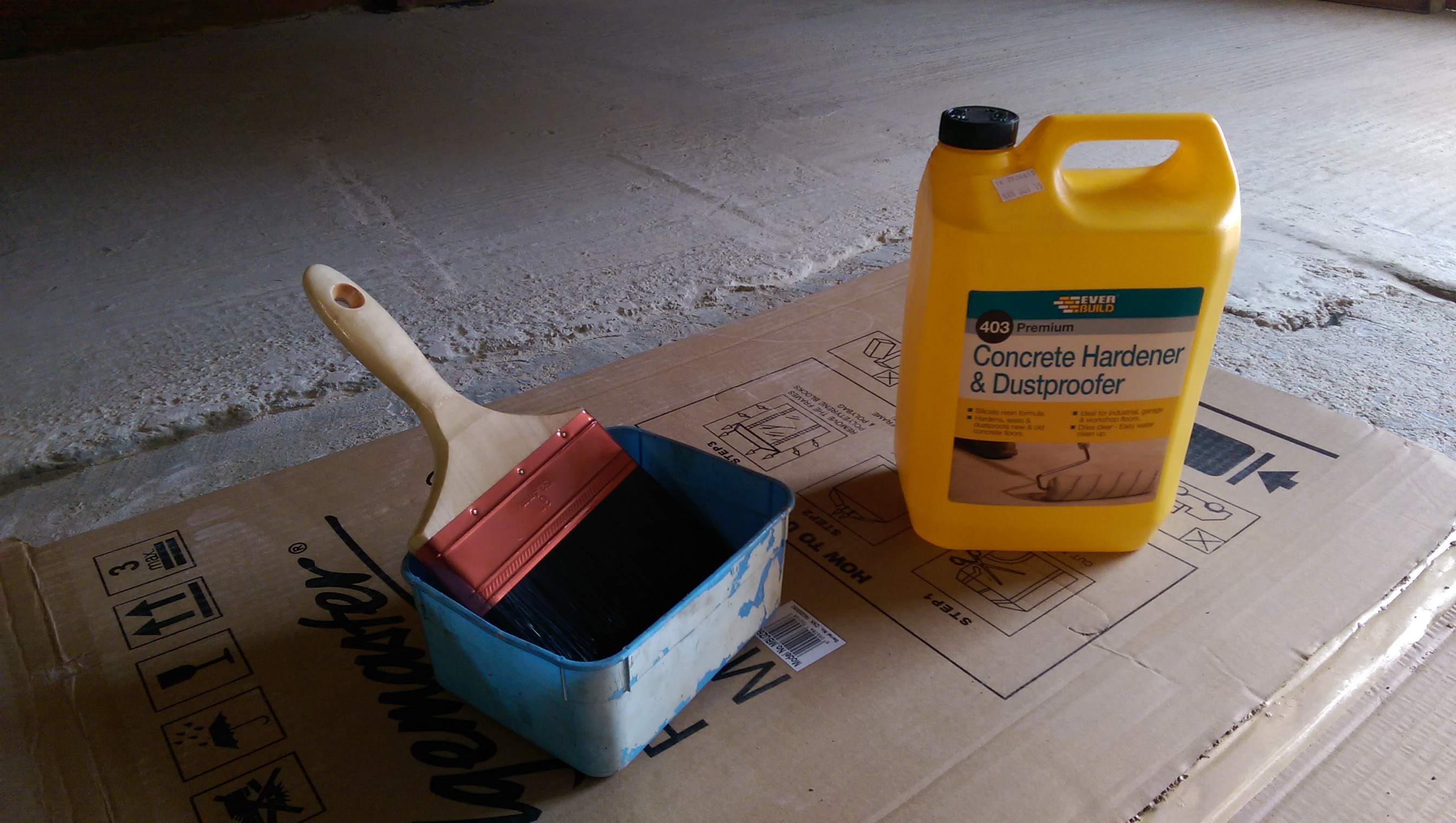

After that I put this stuff down on the new floor. It works great for hardening the top surface and stopping the dust you get from concrete floors.
IMAG6475



Getting there. I did 3 coats of this stuff.

IMAG6477



While I was at it I PVA’d the walls in Jem’s Mini’s space.

IMAG6473



With that done I got Jem’s Mini in it’s space where it will probably stay until there is a door in front of it.

IMAG6503



Next the old floor needed levelling. I had no idea the old floor was not level until it came to laying the new floor. The guys laid the new floor level to the highest point of the old floor so I could bring the old floor up to match with self levelling compound.

Primer going on.

IMAG6545

IMAG6548



Screws set in the floor at the right height for the floor to come up to so all I have to do is keep putting levelling compound on until these disappear.

IMAG6547

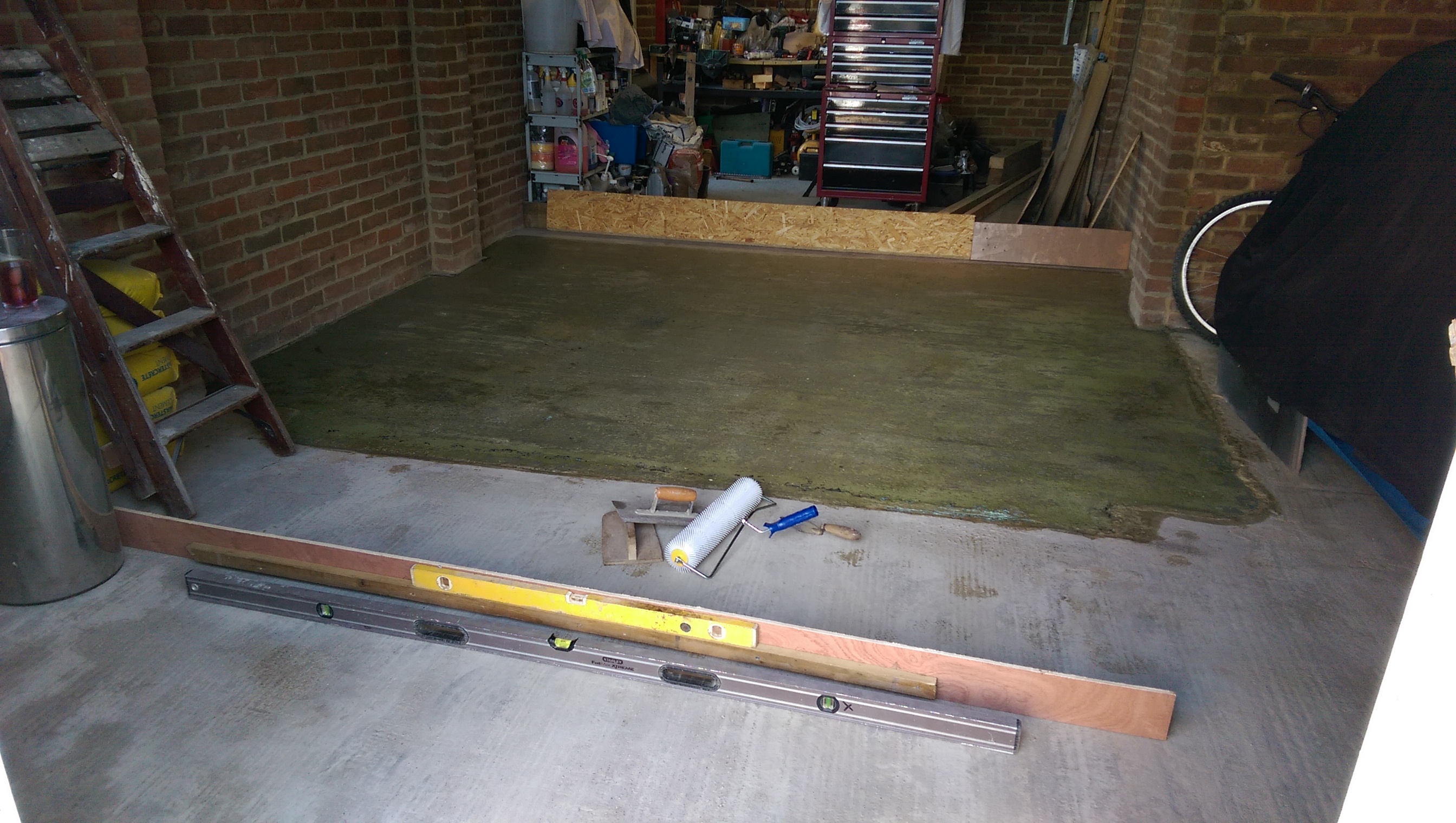

Tools to check progress

IMAG6549


IMAG6552

IMAG6553

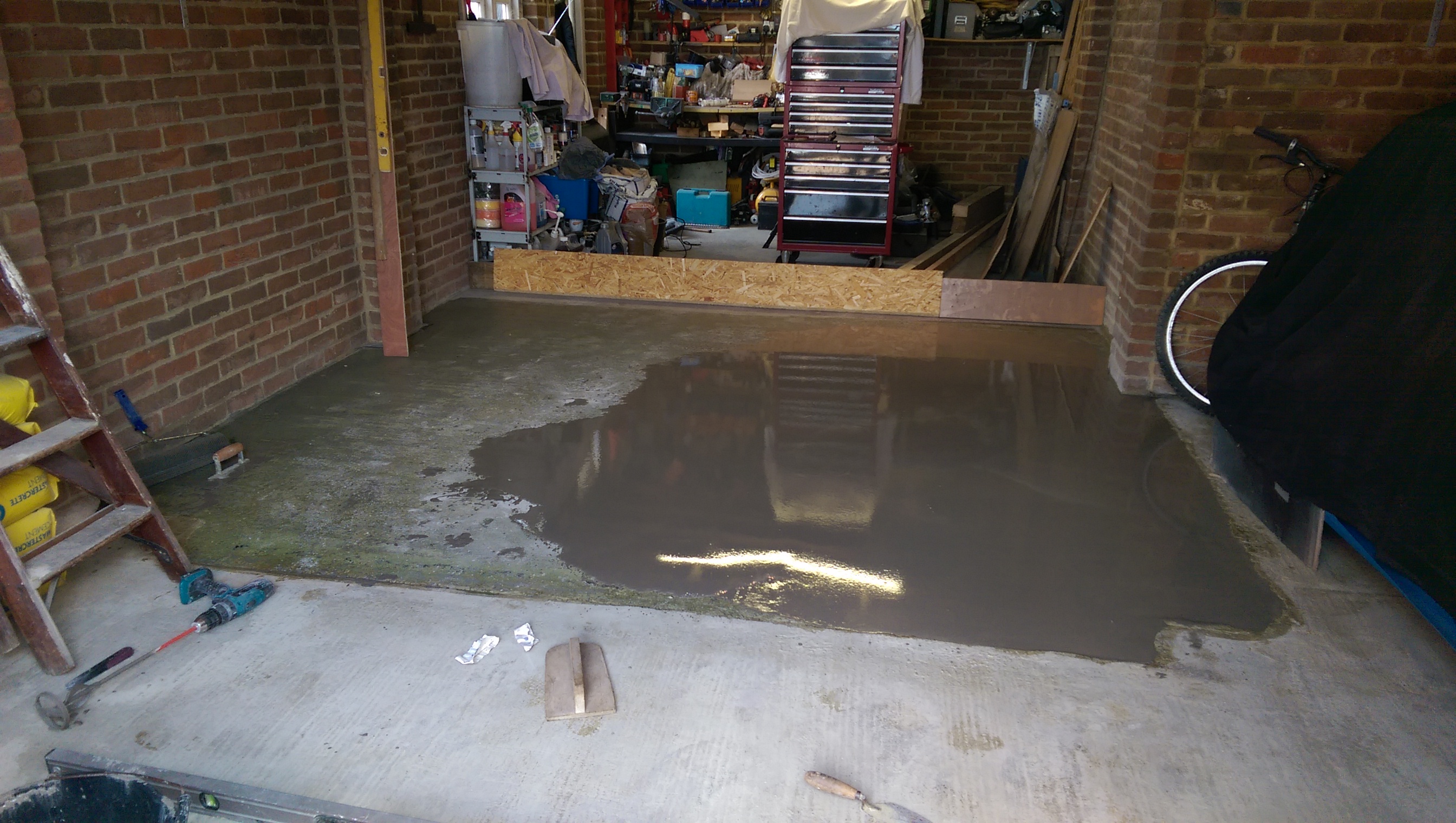

5 bags wasn’t enough so we had to go fetch a couple more. After the first lot had dried fully, another coat of primer then

IMAG6556

more levelling compound went on.

IMAG6558



I used Setcrete High performance levelling compound because  “Heavy-duty compound which can be used in high traffic and wheeled traffic areas and in areas subjected to high stress” sounded like the right kind of thing.

So far it’s worked well though it’s not a perfect finish in places, that was my fault for trying to work it too late after it started setting.  I have only levelled the area that needs to be level for the lift and doing wheel alignment as it’s not worth the time and money doing the whole floor at the back wall.

IMAG6557



Level in all directions now. 🙂

IMAG6562

IMAG6563

IMAG6561

Time to get a lift in place 😀
