fitting a door into the garage side wall

The garage extension was always going to leave a bit of land that would be very difficult to access so I had in mind that I’d wait until the extension was built then figure out a good place to fit a door allowing access to the space. Then I could build a wooden structure to enclose the space.

After some careful planning and discussion with my ‘design consultant’ Jem, the best position of the door was decided upon so we could firstly fit a concrete lintel.

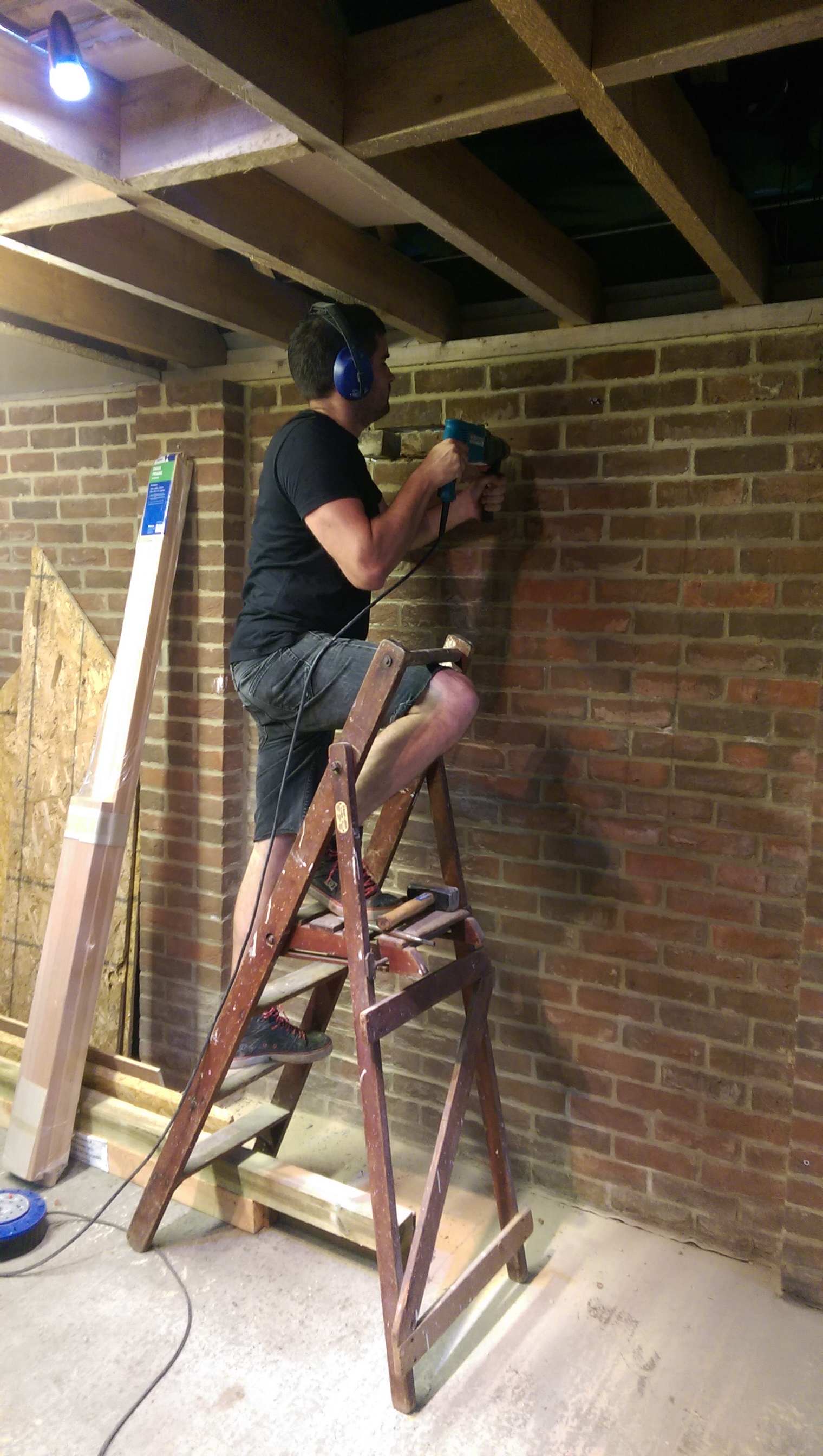

I let townie at the wall with the SDS chisel.

IMAG6536

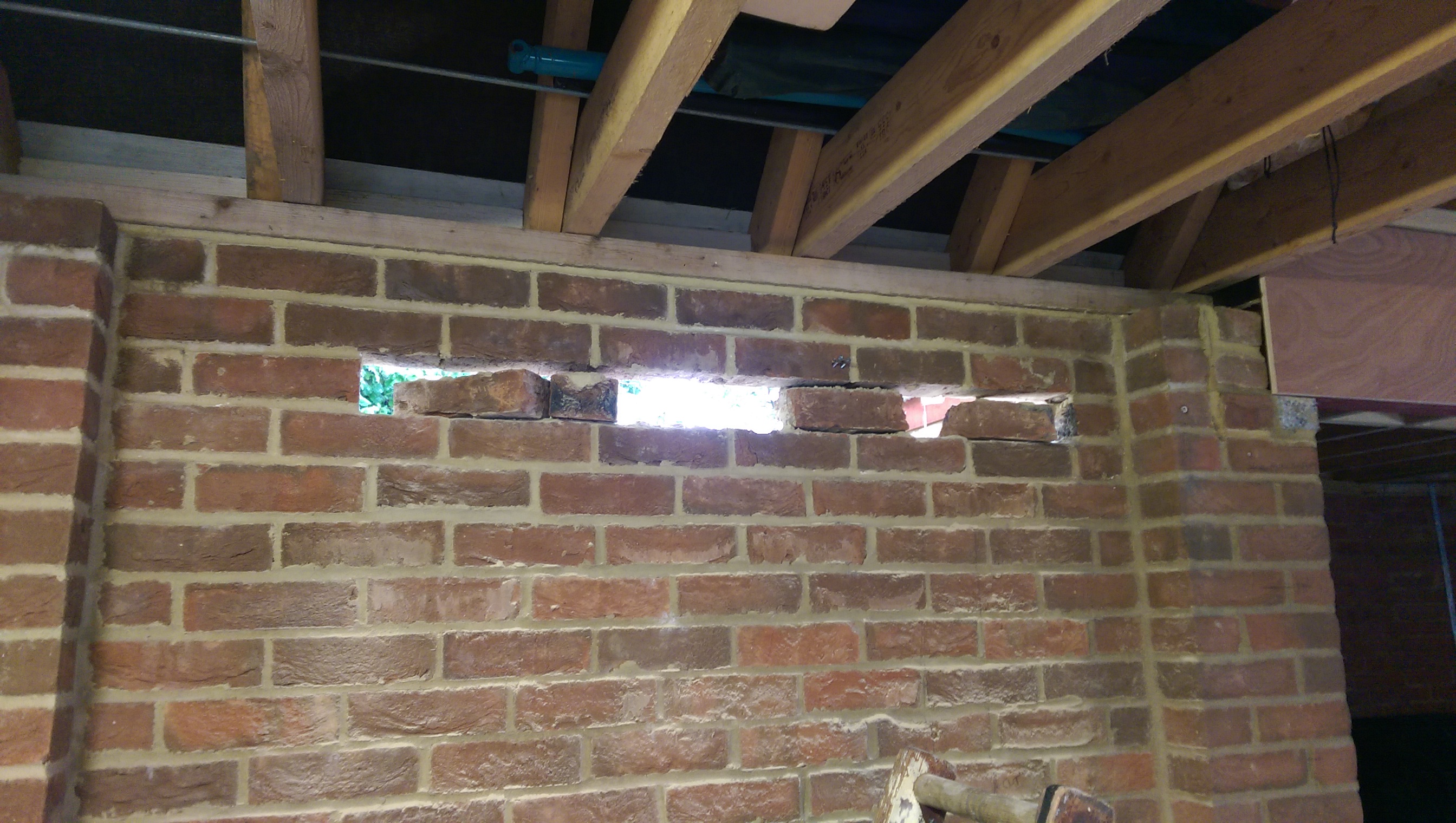

A hole just right for the lintel.

IMAG6538

IMAG6539



The lintel slotted in easy enough.

IMAG6541

IMAG6543

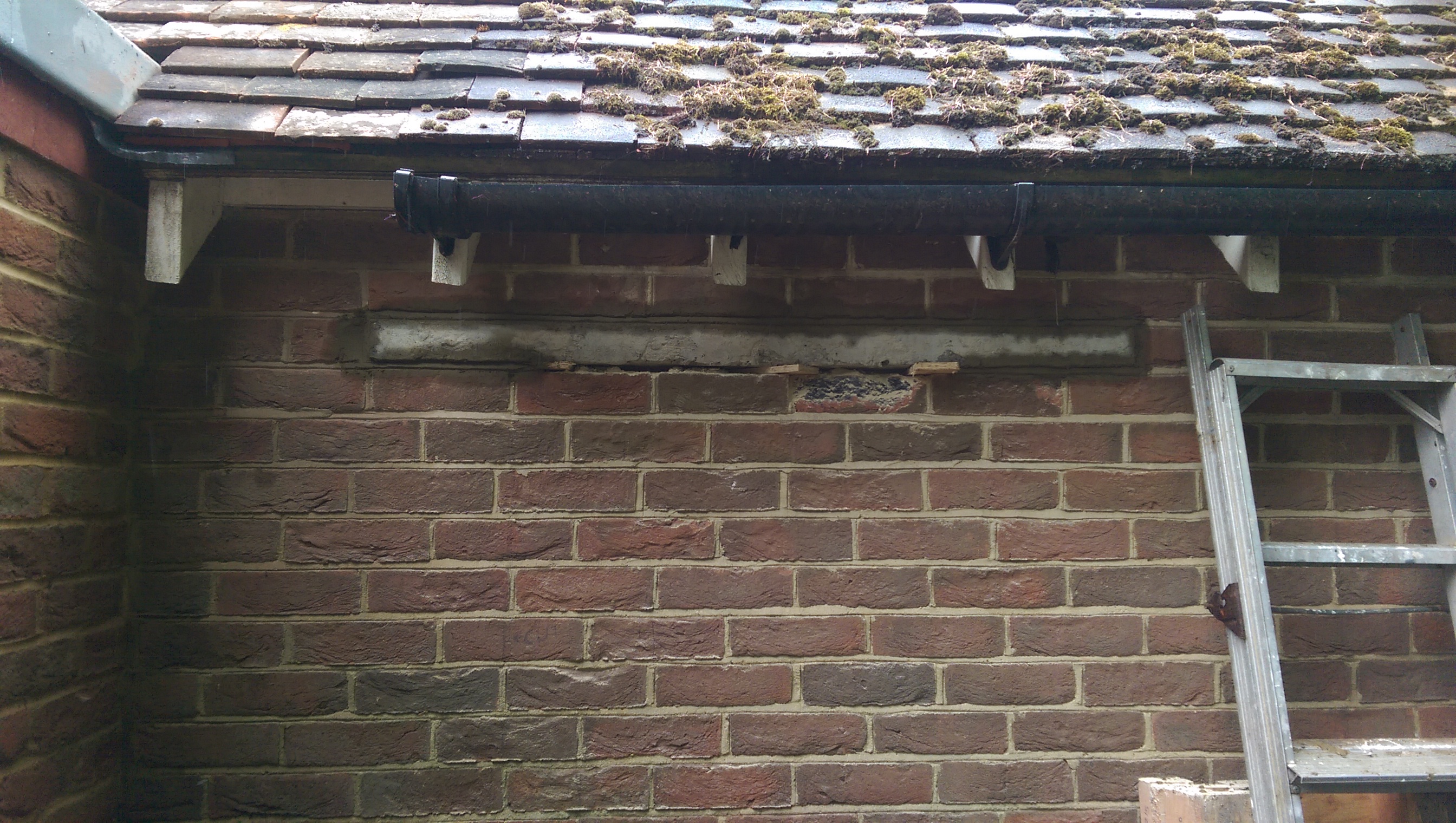

An attempt at some birds beak pointing to match the rest.

IMAG6542

IMAG6544

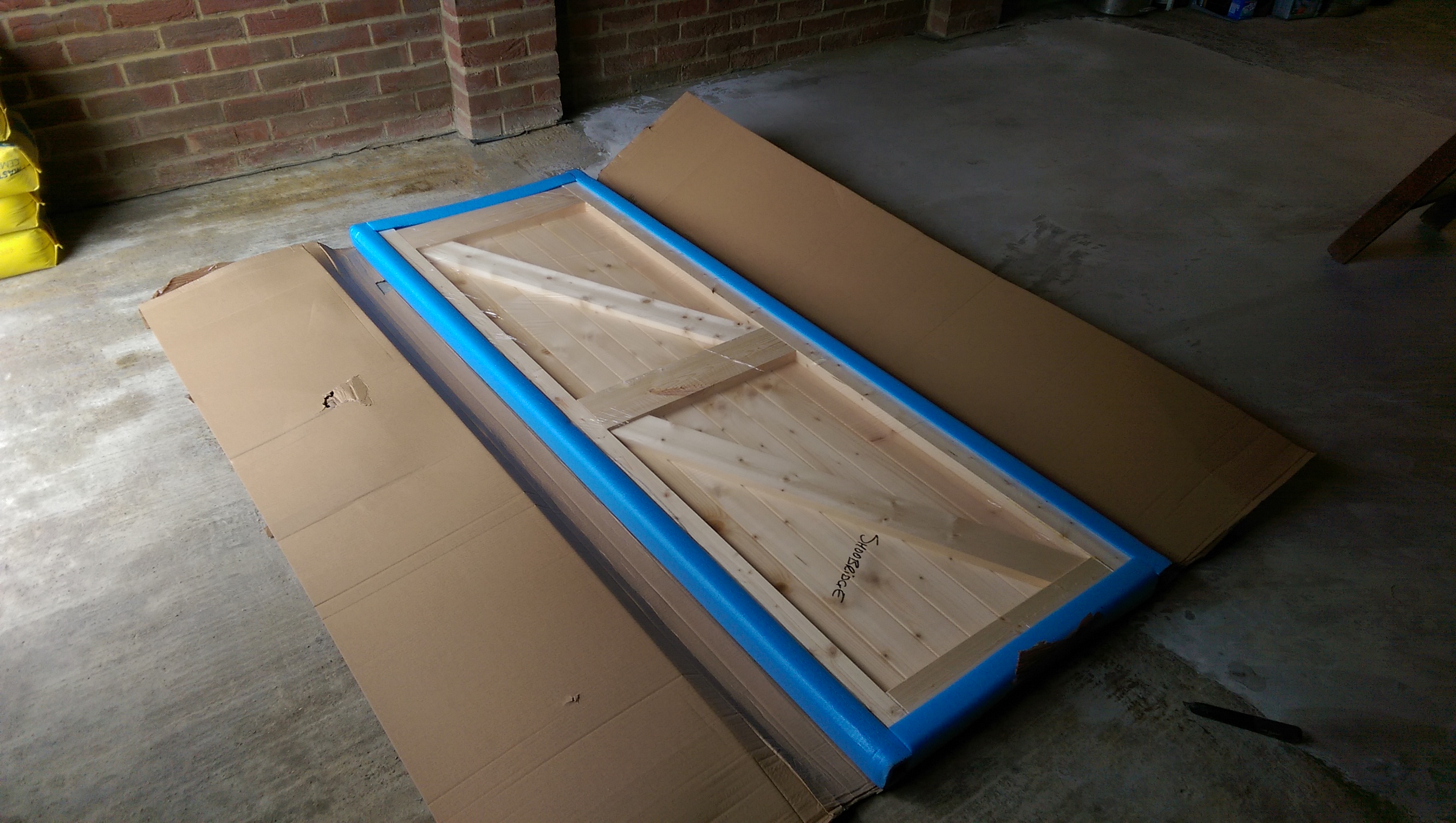

I couldn’t find a door and/or frame the right size for what I needed so I just bought the cheapest I could that was a close as possible. Β That way I could have a go at cutting them both down to fit and if it didn’t go well it wouldn’t matter too much.

IMAG6565

IMAG6622

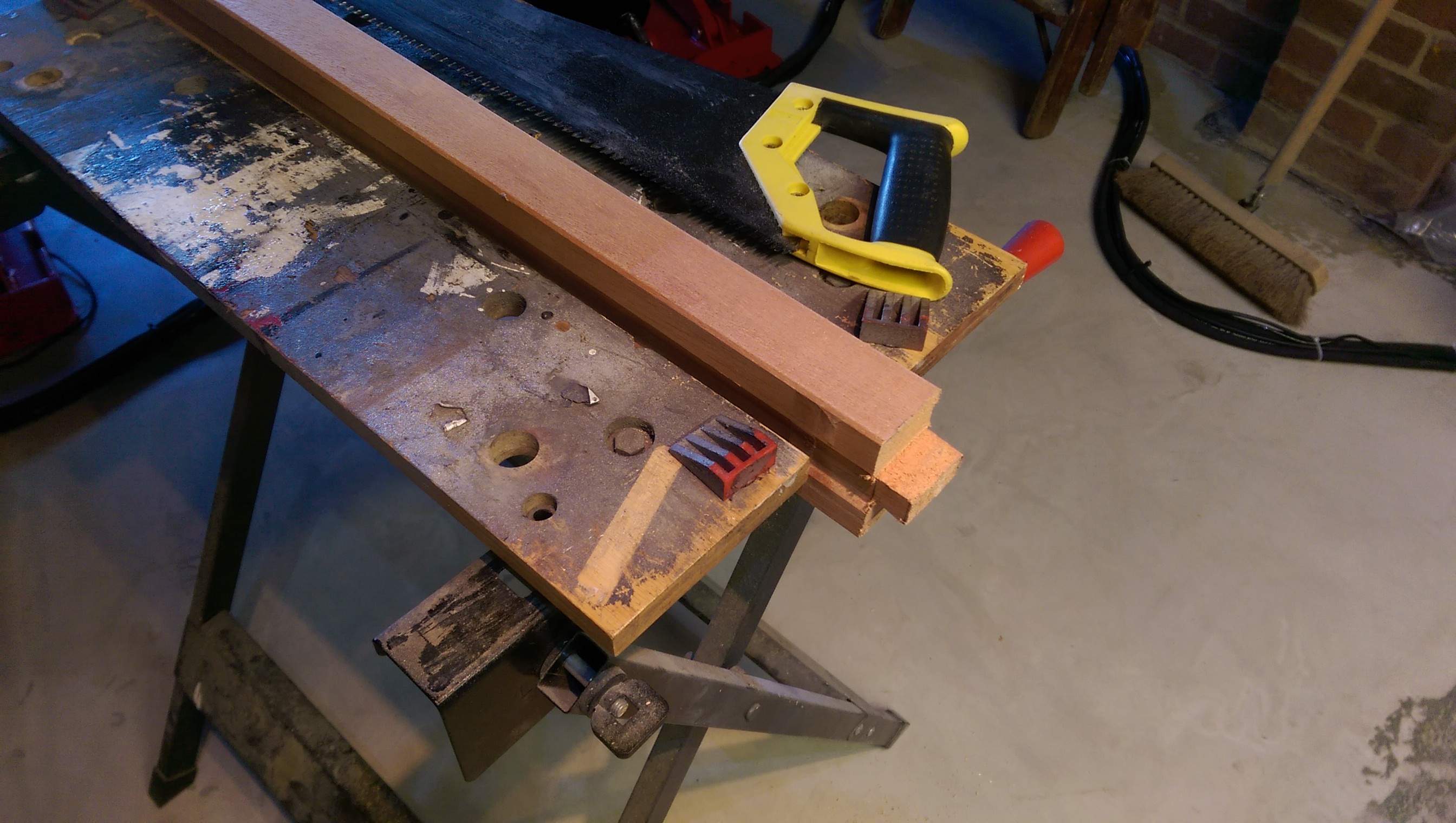

So I got stuck into a bit of woodwork. Firstly modifying the frame to the width and height it needed to be to fit the hole I would cut in the wall.

IMAG6623

IMAG6624

IMAG6630

IMAG6631

IMAG6632

IMAG6629



Frame sorted now to trim the door down top and bottom.

IMAG6633

IMAG6634



Recesses chiseled out for the hinges in the door and frame.

IMAG6638

IMAG6636



A door and frame as a whole. All for about Β£150 quid which is massively cheaper than buying a door and frame already built together.

IMAG6627

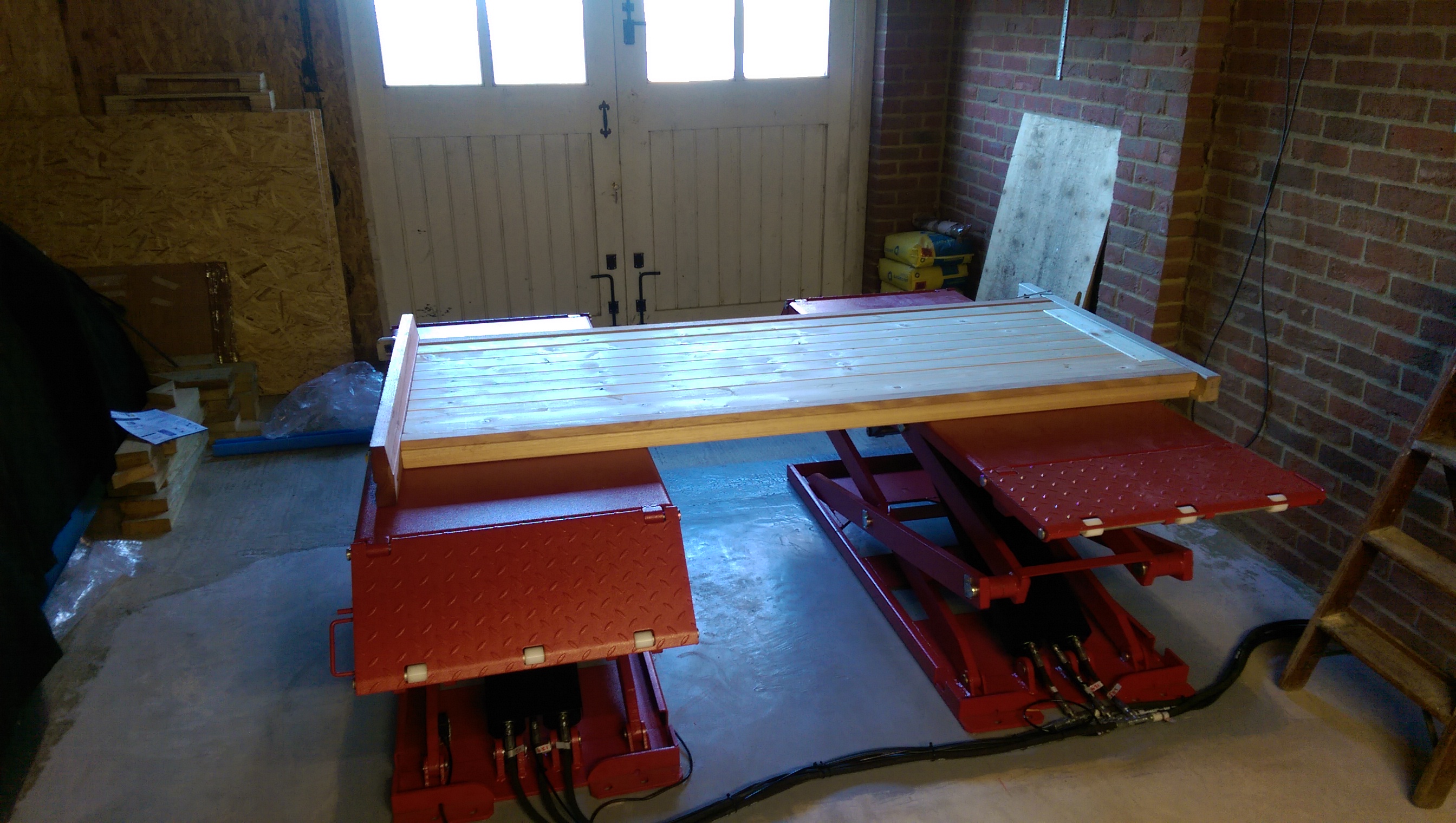

Turns out the car lift is also and awesome adjustable height bench!

IMAG6628



Now I know the door frame’s exact size I can cut a big hole in the wall. Β Really can’t afford to get this wrong now!

IMAG6640



A hole.





IMAG6644

IMAG6641





A door in the hole. πŸ™‚

IMAG6647

IMAG6648

Never done this kind of job before so wasn’t really sure what I was doing but I’m really happy it’s turned out nice.
